corosync + pacemaker and consul 설치

본 포스트에서는 corosync + pacemaker와 consul을 설치하는 과정을 설명합니다.

corosync+pacemaker와 consul을 시스템의 이상유무를 확인하여 클라우트 환경의 가용성과 안정성을 보장하기 위한 방법의 기초적인 부분입니다. corosync+pacemaker와 consul을 둘 다 설치할 필요는 없으며 openstack의 경우 corosync+pacemaker가 포함되어 있습니다.



호스트 파일 설정

# con01, con02, con03, com01, com03
vi /etc/hosts
192.168.140.101 con01
192.168.140.102 con02
192.168.140.103 con03
192.168.140.104 com01
192.168.140.105 com02

pacemaker 설치 및 설정

# con01, con02, con03, com01, com02
sudo apt install --assume-yes pacemaker corosync pcs

# con01, con02, con03, com01, com02
sudo systemctl start pcsd

# con01, con02, con03, com01, com02
sudo systemctl enable pacemaker corosync pcsd

# con01, con02, con03, com01, com02
passwd hacluster

# con01
pcs cluster auth con01 con02 con03 com01 com02
or
pcs host auth con01 con02 con03 com01 com02

# con01
pcs cluster setup --name cluster1 con01 con02 con03 com01 com02 --force

# con01
pcs cluster enable --all

# con01
pcs cluster start --all

consul 설치 및 설정

consul 패치지 설치

# con01, con02, con03, com01, com02
root@con01:~# wget -O- https://apt.releases.hashicorp.com/gpg | gpg --dearmor | sudo tee /usr/share/keyrings/hashicorp-archive-keyring.gpg

# con01, con02, con03, com01, com02
root@con01:~# echo "deb [signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list

# con01, con02, con03, com01, com02
root@con01:~# sudo apt update

# con01, con02, con03, com01, com02
root@con01:~# sudo apt install consul

# con01, con02, con03, com01, com02
root@con01:~# consul version
Consul v1.14.4
Revision dae670fe
Build Date 2023-01-26T15:47:10Z
Protocol 2 spoken by default, understands 2 to 3 (agent will automatically use protocol >2 when speaking to compatible agents)

consul 설정

# con01, con02, con03
sudo vi /etc/consul.d/consul.json
{
    "bind_addr": "192.168.140.101",
    "datacenter": "openstack",
    "data_dir": "/opt/consul",
    "log_level": "INFO",
    "server": true,
    "bootstrap_expect": 3,
    "node_name": "con01",
    "addresses": {
        "http": "0.0.0.0"
    },
    "ui_config": {
        "enabled": true
    },
    "ports": {
        "http": 8500,
        "serf_lan": 8501
    },
    "retry_join": ["192.168.140.101:8501", "192.168.140.102:8501", "192.168.140.103:8501"]
}


# com01, com02
sudo vi /etc/consul.d/consul.json

{
    "datacenter": "openstack",
    "data_dir": "/opt/consul",
    "log_level": "INFO",
    "node_name": "com01",
    "client_addr": "0.0.0.0",
    "bind_addr": "192.168.140.104",
    "addresses": {
        "http": "0.0.0.0"
    },
    "retry_join": ["192.168.140.101:8501", "192.168.140.102:8501", "192.168.140.103:8501"]
}

consul 재시작 및 멤버확인

# con01, con02, con03, com01, com02
root@com02:~# systemctl restart consul
root@com02:~# systemctl status consul

# con01, con02, con03, com01, com02
root@con01:~# consul members -http-addr=192.168.140.101:8500
Node   Address               Status  Type    Build   Protocol  DC          Partition  Segment
con01  192.168.140.101:8501  alive   server  1.14.4  2         management  default    <all>
con02  192.168.140.102:8501  alive   server  1.14.4  2         management  default    <all>
con03  192.168.140.103:8501  alive   server  1.14.4  2         management  default    <all>
com01  192.168.140.104:8501  alive   client  1.14.4  2         management  default    <default>
com02  192.168.140.105:8501  alive   client  1.14.4  2         management  default    <default>

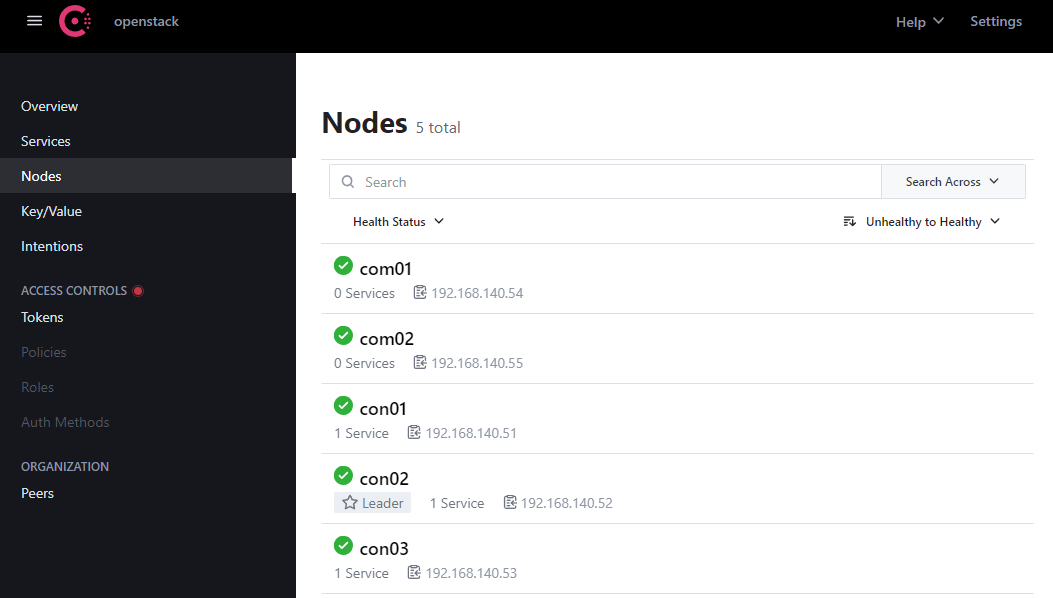

consul 관리자 접속

http://192.168.140.101:8500 을 웹브라우저를 통해 접속합니다.

consul 오류 로그 확인

아래의 명령을 통해 consul 시스템 로그를 확인할 수 있습니다.

# con01, con02, con03, com01, com02
root@con01:~# sudo journalctl -u consul.service -r
